Description
Product Details
Function & Benefits
EM Comfort is a series of magnetic latches where the anchor plate is released from the magnet when the operating voltage is broken. The lock is unlocked until the operating voltage returns and the anchor plate contacts the magnet.
- Easy and economical locking
- Durable and rustproof
- Easy to install with adjustable mounting plate
- Low power consumption
- No residual magnetism
Application
The EM Comfort series is designed for internal sliding doors with requirements for safe escape and controlled access, glass doors, cabinets, drawers, etc.
Models
- EMC 400 AH: Single magnetic lock with 400 lbf (1779 N) holding force, surface mount, with lock status sensor, all over in anodized aluminum
- EMC 600 ALH: Single magnetic lock with 600 lbf (2668 N) holding force, surface mount, with lock status sensor and red / green LED indicator, in anodised aluminum

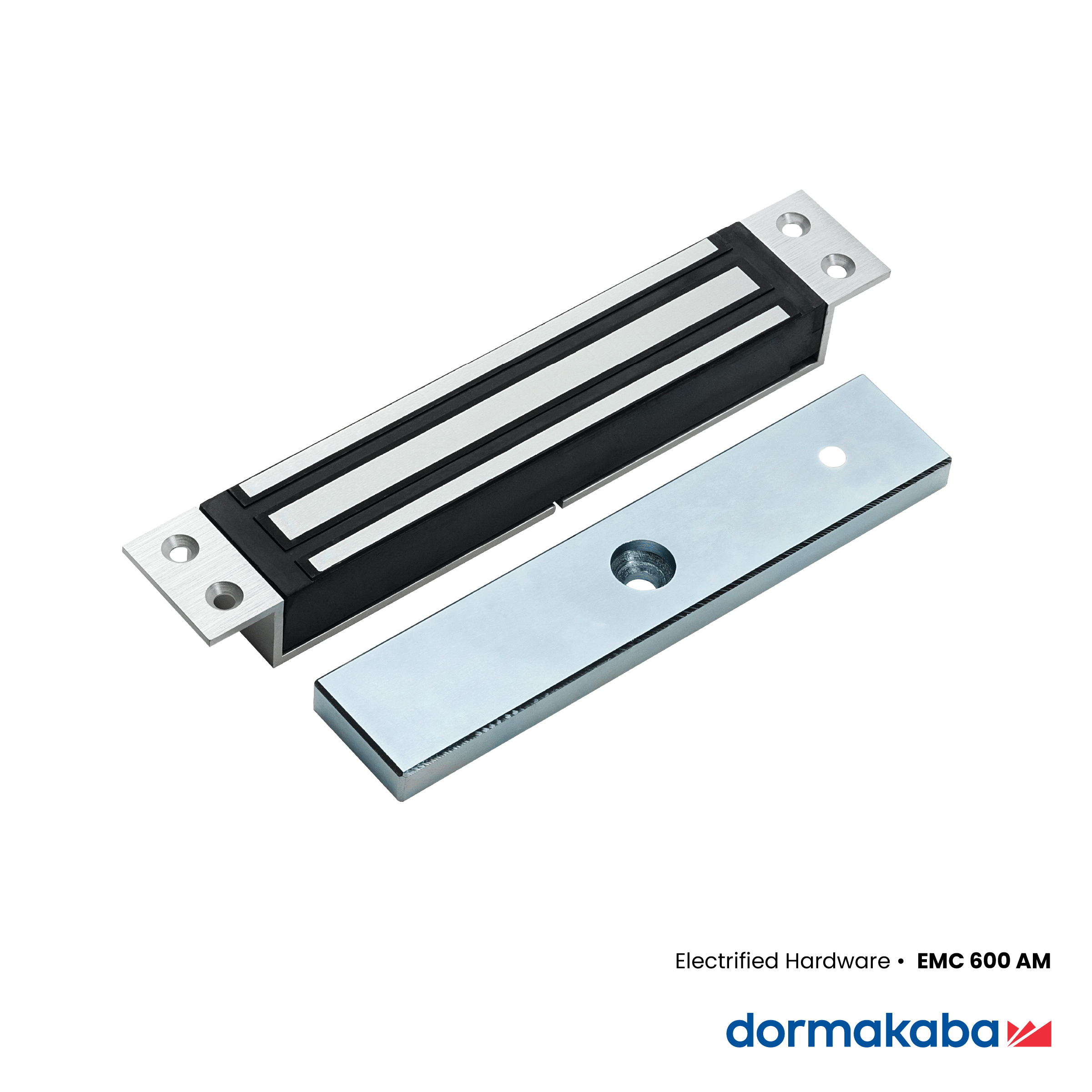

- EMC 600 AM: Single magnetic lock with 600 lbf (2668 N) holding force, recessed mounting, with lock status sensor

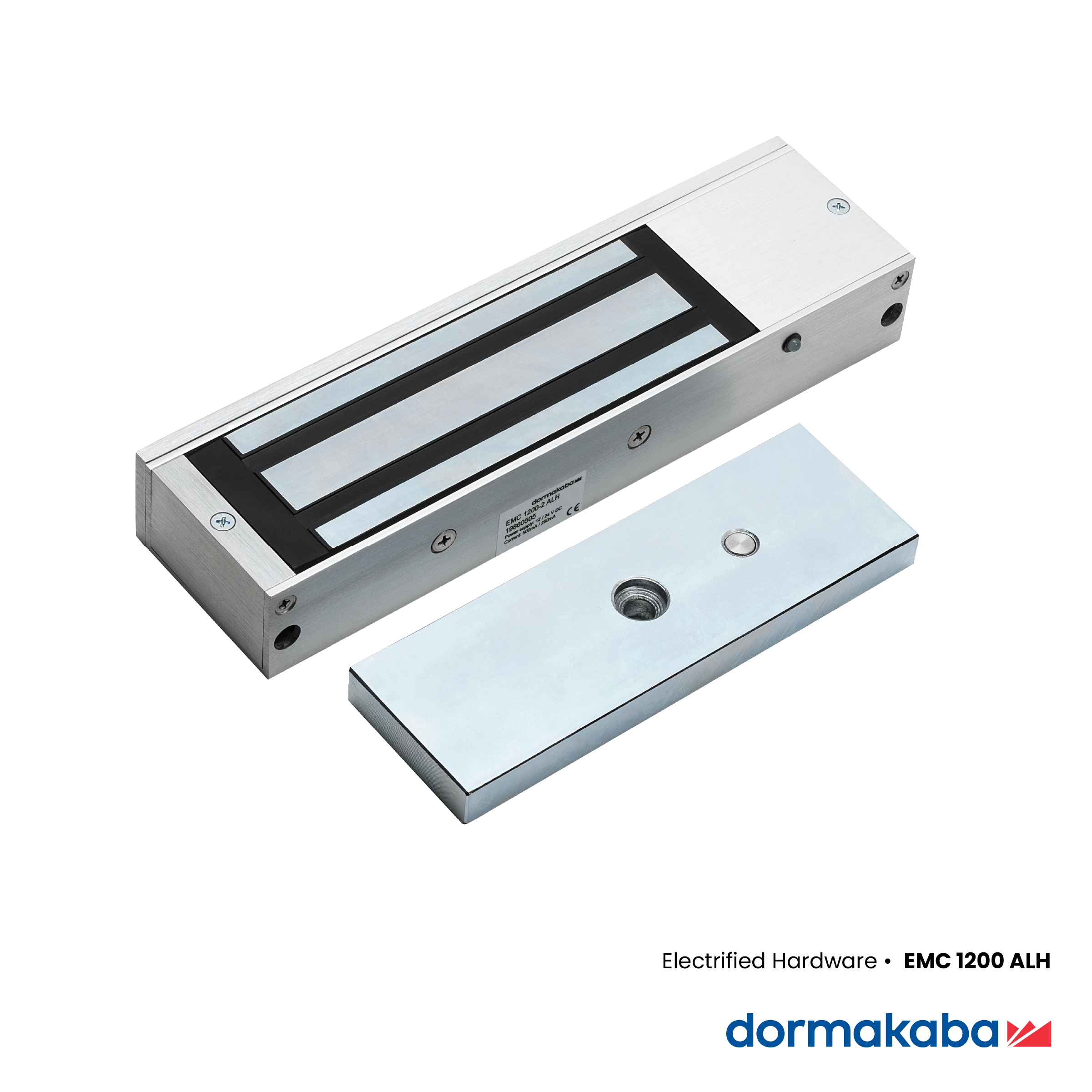

- EMC 1200 ALH: Single magnetic lock with 1200 lbf (5338 N) holding force, surface mount, with lock status sensor and red / green LED indicator, in anodized aluminum

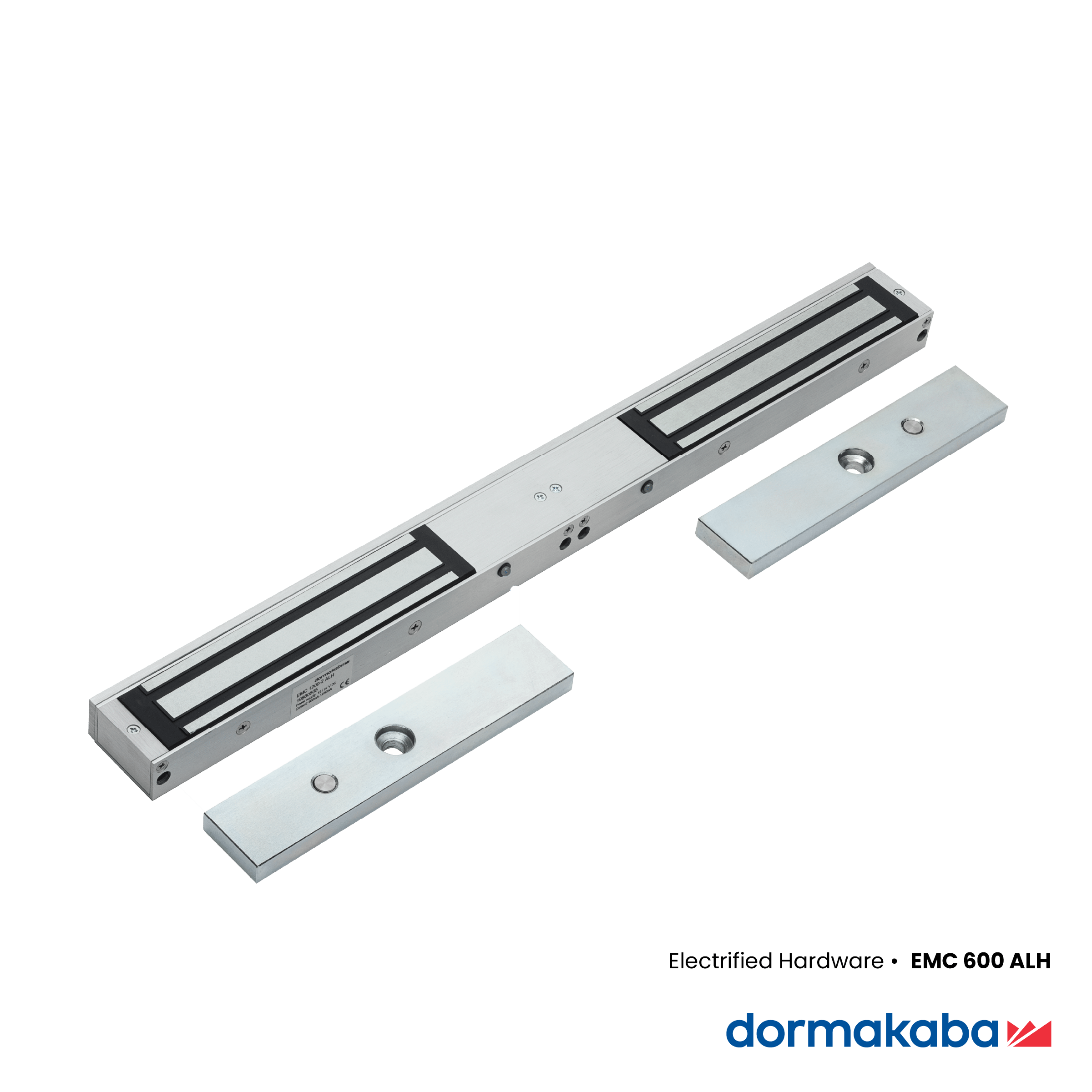

- EMC 600-2 ALH: Double magnet lock with 600 lbf (2668 N) holding force per magnet, surface mount, with lock status sensor and red / green LED indicator, in anodised aluminum
- EMC 1200-2 ALH: Double magnetic lock with 1200 lbf (5338 N) holding force per magnet, surface mount, with lock status sensor and red / green LED indicator, in anodised aluminum
Downloads
Electromagnetic Locks Technical Brochure
Electromagnetic Locks Factsheet
